How to Add Drawers to a 30-Inch Vanity with Open Plumbing
Adding drawers to a 30-inch vanity with open plumbing is a practical way to reclaim lost storage space beneath your sink. Most standard vanities leave a large, cavernous area that quickly becomes cluttered, but you can transform this zone by building custom drawer boxes that work around your drain pipes. Because you are working with a 30-inch frame, you have enough lateral space to install a bank of narrow drawers or a U-shaped pull-out.
This project requires careful measurement of your existing p-trap and supply lines to ensure the drawer box clears all obstructions. By following these steps, you will effectively master adding drawers to a 30-inch vanity with open plumbing.
Strategic Planning and Measurements
To begin adding drawers to a 30-inch vanity with open plumbing, you must first map the exact location of your pipes. Use a tape measure to identify the height and depth of the drain pipe and water supply valves.
These obstacles dictate the maximum depth and width of your drawer boxes. You should aim for at least 1 inch of clearance between the drawer box and the plumbing to prevent accidental contact.

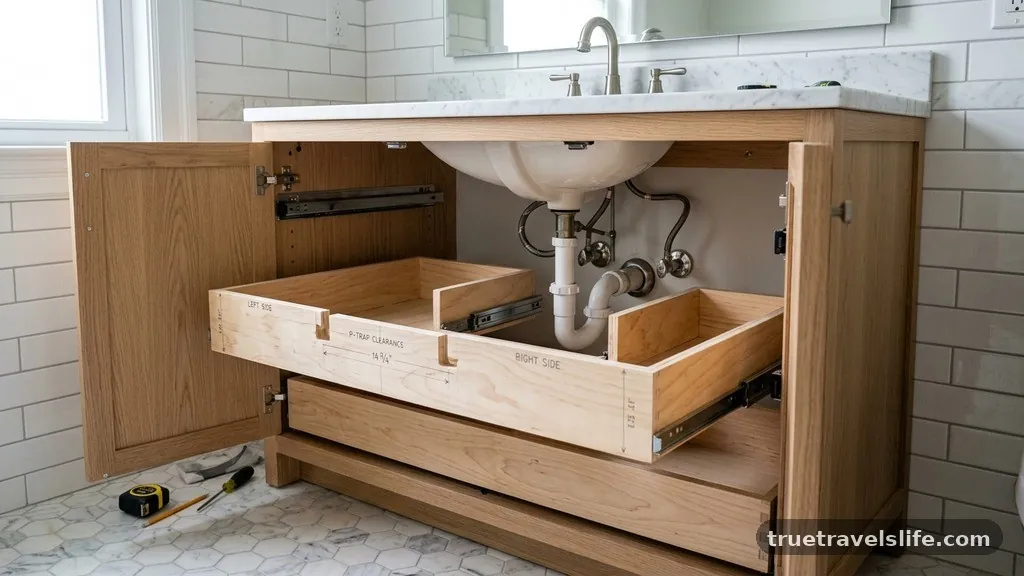

Mapping the Interior Space
- Measure the distance from the vanity floor to the bottom of the sink basin.
- Mark the location of the drain pipe on the back wall of the cabinet.
- Check the swing radius of your vanity doors to ensure they don’t block drawer operation.
- Account for the thickness of your drawer slides, which usually require 1/2 inch of space on each side.
Selecting Materials and Hardware
Choosing the right materials ensures your new storage remains stable and moisture-resistant. Plywood is the industry standard for drawer boxes because it resists warping better than solid wood in high-humidity bathroom environments. You will need 1/2-inch plywood for the box sides and 1/4-inch plywood for the drawer bottoms.

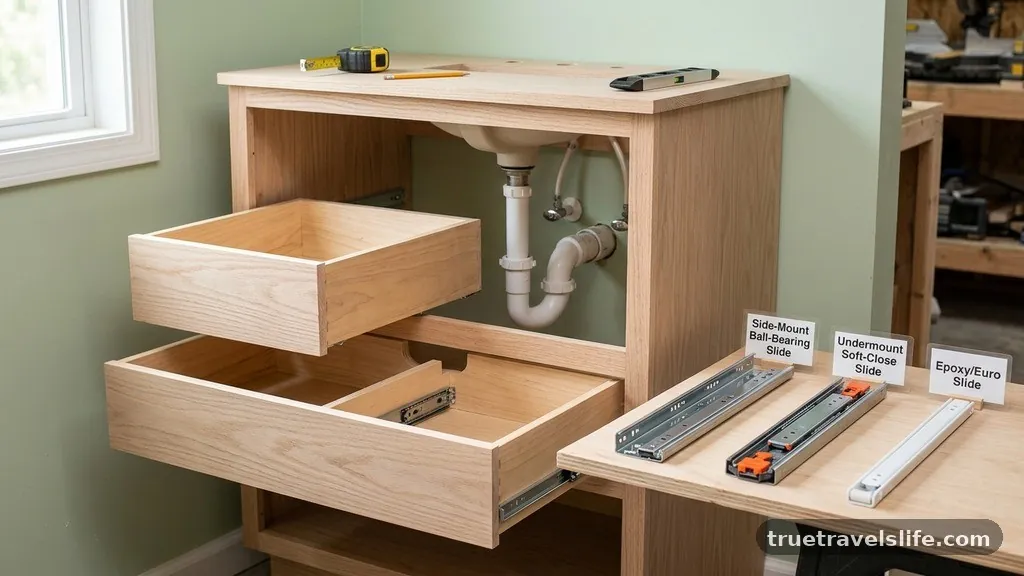

Comparison of Drawer Slide Types
| Slide Type | Best Use Case | Installation Complexity |
|---|---|---|
| Side-Mount | Budget builds | Moderate |
| Undermount | Modern, clean look | High |
| Center-Mount | Lightweight items | Low |
Building and Installing the Boxes
When you build your drawer boxes, use pocket holes to connect the pieces for a clean, professional finish. Apply wood glue to every joint before securing it with pocket hole screws to ensure the structure holds up under daily use. If your plumbing occupies the center of the vanity, consider building a U-shaped drawer that wraps around the pipe.

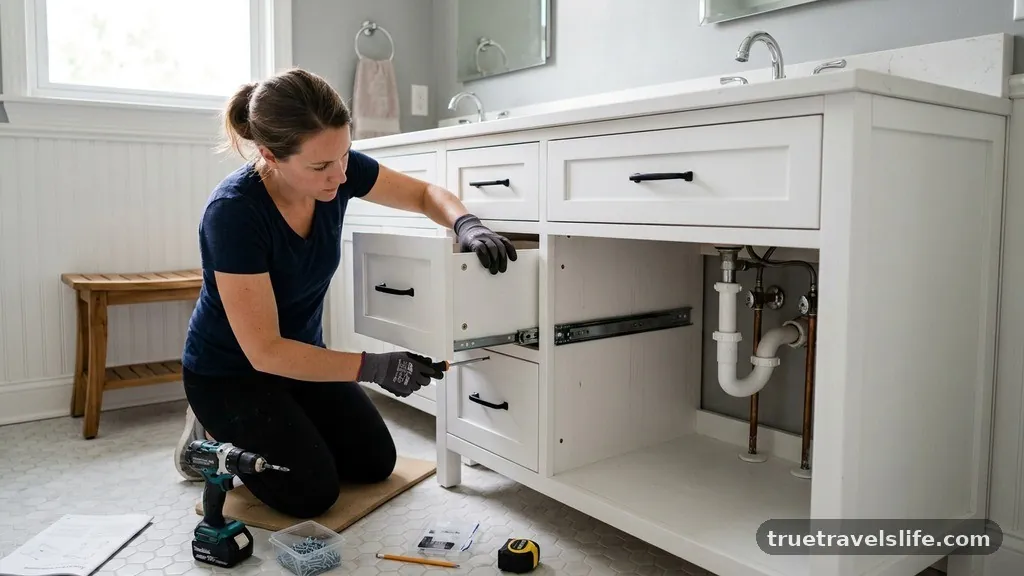

Assembly Best Practices
Start by cutting your plywood pieces to size based on your earlier measurements. Assemble the front, back, and side pieces using a Kreg jig or similar tool to drill your holes. Once the frame is square, slide the bottom panel into a pre-cut groove or attach it to the underside with finish nails.
After the box is assembled, attach the drawer slides to the vanity frame first. Use a level to ensure the slides are perfectly horizontal, as even a slight tilt will cause the drawer to roll open or stick. Test the fit before attaching the drawer fronts to ensure the assembly moves smoothly without hitting the plumbing.
Finalizing the Setup
Once the drawers are installed, verify that the plumbing lines are still accessible for future maintenance. You should never permanently block access to the shut-off valves or the p-trap.
If you find the drawers are too deep, simply trim the back panel of the drawer box to clear the pipes. Carefully attach your drawer fronts using double-sided tape for alignment before securing them with screws from the inside of the drawer.
Successfully adding drawers to a 30-inch vanity with open plumbing turns a neglected cabinet into a high-functioning storage area. By taking precise measurements and accounting for your sink’s specific pipe configuration, you eliminate the frustration of digging through a dark, disorganized space. Focus on using quality plywood and reliable drawer slides to ensure your new storage handles frequent use without sagging.
Once you have completed the installation, you will find that even a small 30-inch vanity offers enough room to keep your bathroom essentials neatly tucked away. If you encounter any tight spots during your build, remember that small adjustments to your drawer width usually solve most clearance issues. Reach out to a local hardware expert if you need help selecting the right mounting hardware for your specific cabinet material.
